• Fully compliant with HDMI 2.0b, HDCP 2.2, and HDCP 1.x
• Supports 18Gbps video bandwidth for uncompressed 4K content
• Resolutions up to 4K@60Hz (4:4:4) supported on both input and output
• Compatible with LPCM, AC3, DD+, DTS, DTS-HD — up to 7.1 channels of high-definition audio

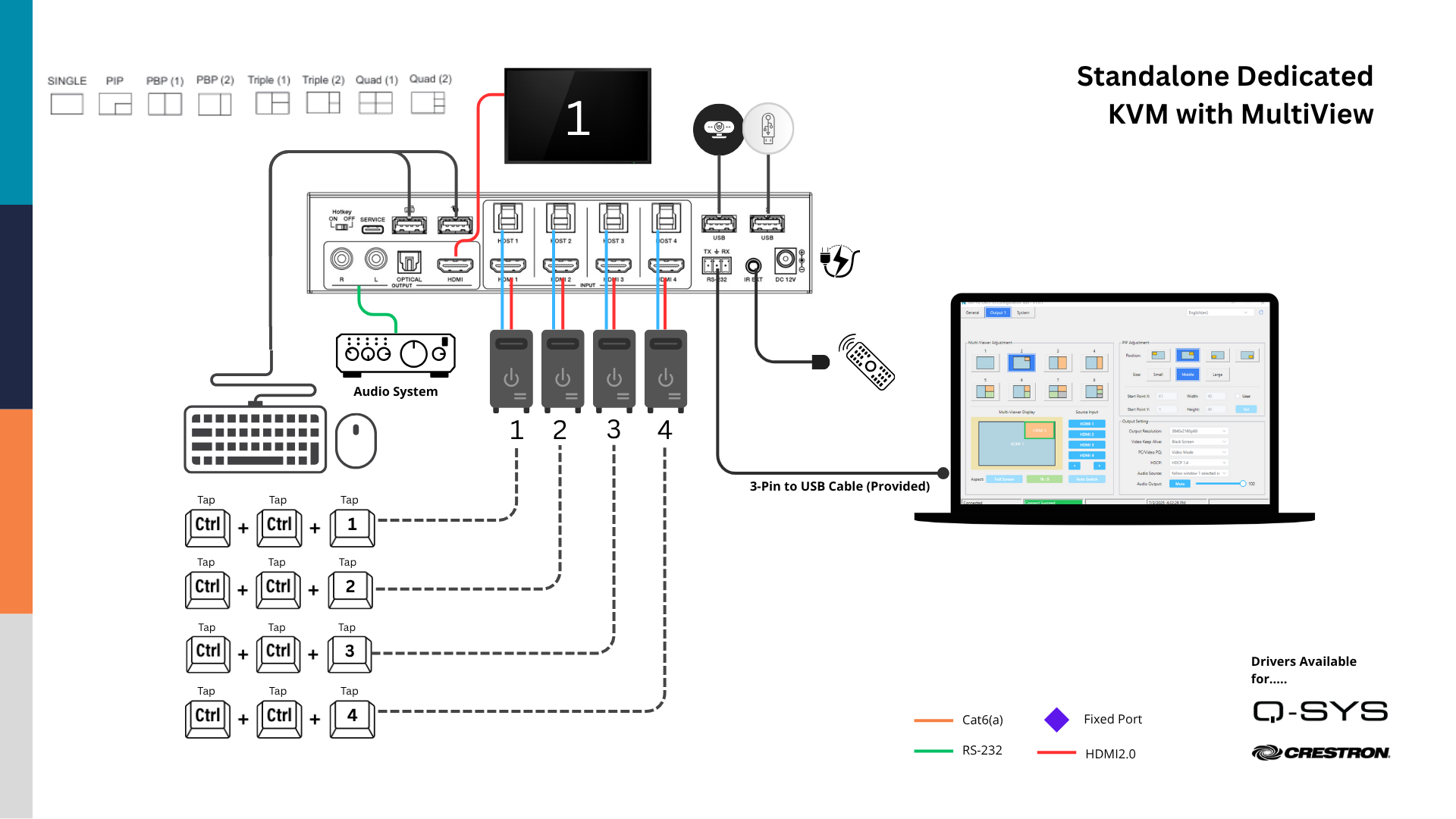

• Seamless input switching with multi-image display on a single UHD monitor
• One Keyboard user controlling up to 4 PCs Offers 8 versatile display modes
• Seamless switching in single-screen mode; fast switching in Multiview mode
• On-screen display (OSD) menu for advanced configuration
• Comprehensive EDID management for device compatibility
• Multiple control options:
  • Front panel buttons
  • IR remote
  • OSD menu
  • RS-232 commands

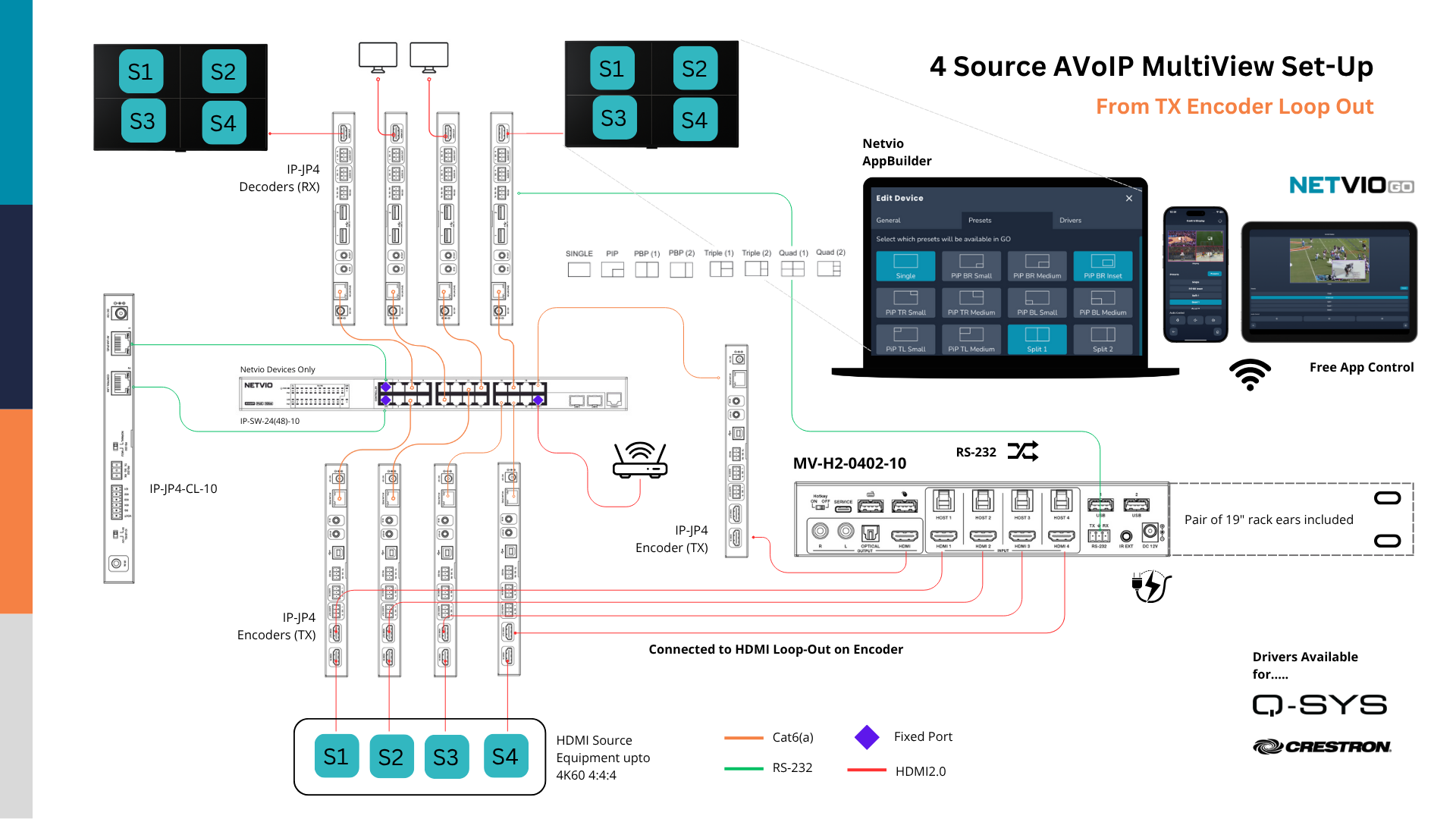

  • NetvioGo (as part of a JP4 Series AVoIP solution)
  • Crestron & Q-Sys Drivers
• Built-In USB3.1 Gen1 Hub for peripherals connection.
• Supports wired and wireless keyboard/mouse array
• Comes with 19″ 1U adaptor brackets.

Specifications

Video

• Compliance: HDMI 2.0b, HDCP 2.2 / 1.x
• Bandwidth: 18Gbps uncompressed
• Resolutions: Up to 3840×2160 @60Hz 4:4:4, 8/10/12-bit
• Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• HDR Formats: HDR10, Dolby Vision, HLG

Audio

• HDMI: LPCM 2.0 / 5.1 / 7.1, Dolby Digital, DTS
• Analog: Stereo L/R (RCA) – PCM 2.0
• Optical (S/PDIF): Dolby Digital, DTS 5.1, PCM 2.0
• Audio De-Embedding: Independent selection and volume control

Inputs / Outputs

• Inputs: 4 x HDMI Type-A (female)
• Output: 1 x HDMI Type-A (female)
• Audio Outputs: 1 x L/R RCA, 1 x Optical S/PDIF
• USB: 2 x USB 2.0 Device, 3 x USB 3.0 Device (shared with KVM)

Control

• Local: Front panel buttons, IR remote, OSD navigation
• Serial: RS-232 (3-pin phoenix)
• Software: Netvio AppBuilder, NetvioGo (license-inclusive)
• Third-Party: Crestron, Q-Sys drivers

Multiview Modes

• Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)
• Seamless switching with border and aspect ratio adjustment

Mechanical

• Dimensions: 220mm × 100mm × 44mm
• Weight: 443g (0.98 lbs)
• Housing: Metal enclosure
• Rack Mount: 19″ rack ears included in the box (smart rack presentation)

Environmental

• Operating Temperature: 0–40°C / 32–104°F
• Storage Temperature: -20–60°C / -4–140°F
• Humidity: 20–90% RH (noncondensing)

Power

• Supply: 12V DC (locking connector)
• Consumption: <20W

Connectivity

Inputs

• 4 x HDMI Type-A (female) – Video/Audio Inputs

Outputs

• 1 x HDMI Type-A (female) – Main Output
• 1 x Analog Stereo L/R (RCA) – Audio Output
• 1 x Optical S/PDIF (Toslink) – Audio Output

Control

• 1 x RS-232 (3-pin Phoenix)
• 1 x IR Receiver Port (3.5mm)
• 1 x Front Panel Button Controls
• Remote Control via Netvio AppBuilder, NetvioGo (iOS/Android), Crestron, Q-Sys

USB (KVM & Devices)

• 2 x USB 2.0 Type-A (for keyboard/mouse)
• 3 x USB 3.0 Type-A (for peripherals: webcam, storage drives, etc.)
• 4 x USB 3.0 Type-B Host Ports (linked to HDMI inputs 1–4)

Power

• 1× DC 12V Locking Connector

Integrations

• NetvioGO End-User Application (Free)
• NetvioGo integrations including Blaze, LEA, Powersoft, Symetrix, Cloud, Yamaha, plus many other AV devices.
• Control System Drivers including Crestron, Q-SYS, Control4, RTI, Elan

Included Software & Apps

• Configuration & Control utility

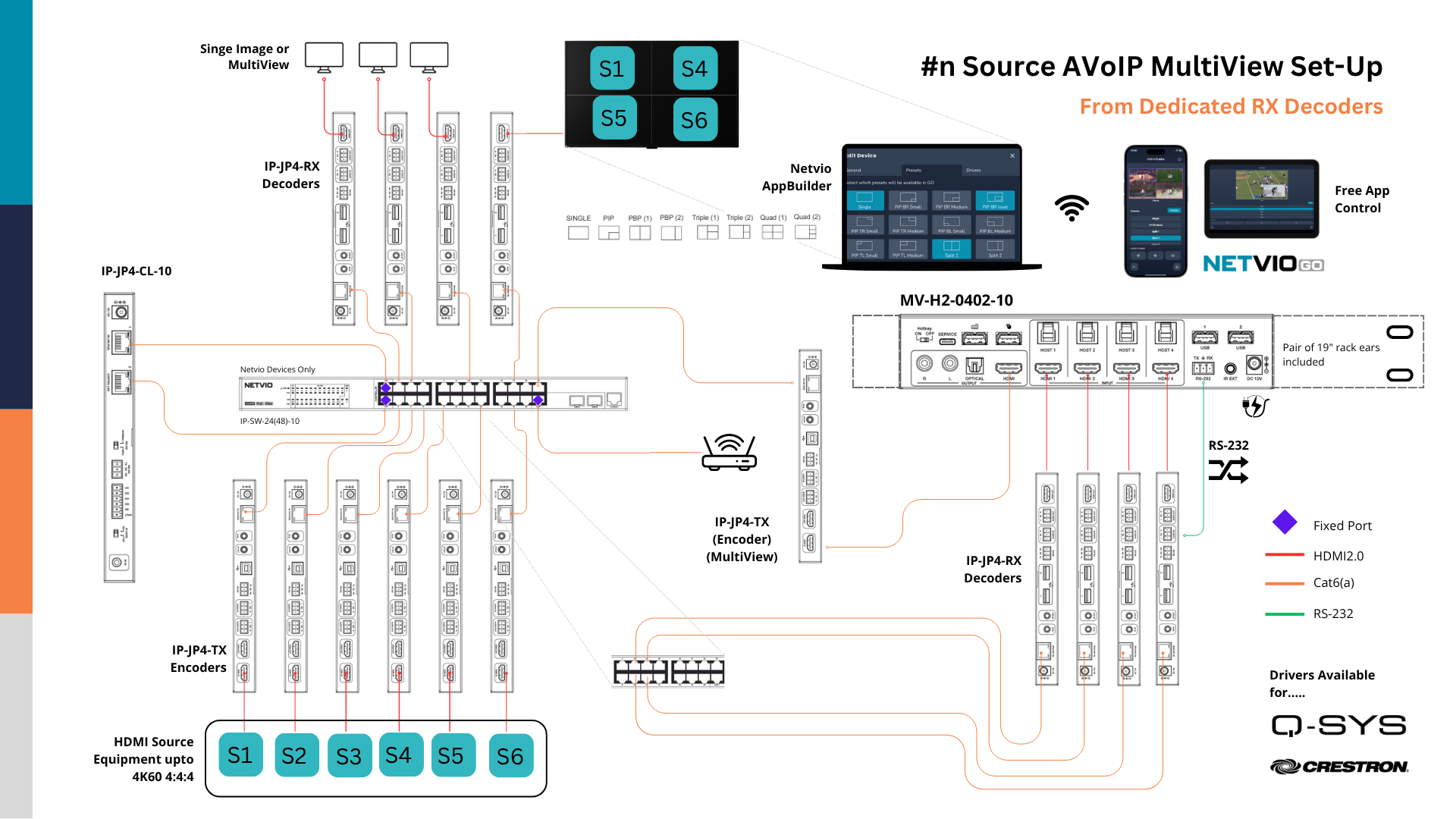

• Netvio360, AppBuilder & NetvioGo when used with JP4 Series AVoIP solutions.

What’s in the box:

• H2 MultiView Unit
• IR Remote (CR2025 not included)
• 3Pin RS-232 Connectors (cable not included)
• IR receiving cable.
• Wall mounted brackets
• 19″ Rack mount kit
• USB to 3Pin RS-232 Cable
• 4x USB3.0 cables (PC to Multiview)
• 12V/2.5A Locking Power Supply

Netvio 5-year standard product warranty.
