Technology
The cable is supplied in Reel-in-box style packaging. A cable reel/spool is packaged inside a carton for dispensing the cable easily.
IEC 60332-1 is a flame-retardant standard that tests a single cable’s ability to resist vertical flame spread.
PVC (Polyvinyl Chloride) is a durable, flexible, and cost-effective material commonly used for cable insulation and jacketing.
The Kordz Lifetime Warranty means that the associated product is covered under warranty and promises maintained product functionality and performance for your lifetime. Refer to www.kordz.com.au/warranty for more information.
-
Product outline
- 18AWG x 2C power conductors and 22AWG x 1P RS-485 pair for modern building control systems
- Balanced strand construction for flexibility and robust power handling
- Industry-standard internal colour coding for straightforward termination
- IEC60332-1 flame retardant PVC jacket with CPR Eca compliance
- Metre-marked cable with internal nylon ripcord for efficient preparation
- Packaged in a recyclable Kordz Reel Box for easy handling and deployment
- AS/NZS S008:2010 and RoHS compliant
- Suitable for use with widely deployed platforms and leading control brands such as Lutron, Crestron and Control4.
- Lifetime warranty for peace of mind
-
Technical info
Technical Specifications
Applicable Technical Standard: RS-485
Construction
Component A
Conductor Material: Oxygen Free Copper Wire
AWG: 22 (7/0.25mm)
Insulation material: Foamed PE
Insulation Colour: White/Blue
Drain Wire: 7/0.20TC
Shielding: Al-foil 100% coverageComponent B
Conductor Material: Oxygen Free Copper Wire
AWG: 18 (41/0.16mm)
Insulation material: SR-PVC
Insulation Colour: Black/RedMechanical Properties
Outer Diameter: 6.0±0.2mm
Jacket Material: IEC 60332-1 PVC composite
Jacket Colour: Blue/Green stripe
Bend radius: 30mmElectrical Properties
ComponentA resistance: Max 55.4 ohms/km at 20°C
ComponentB resistance: Max 21.8 ohms/km at 20°C
Impedance: 100±15Ω
Capacitance: <80PF/m
Voltage rating: 300V -
Warranty
The Kordz ONE 18AWG x 2C + 22AWG x 1P Control Cable is backed by our Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.
-
Reviews
No reviews yet, for the meantime would you take one minute to leave a feedback about your experience?
Leave a Review -
Downloads

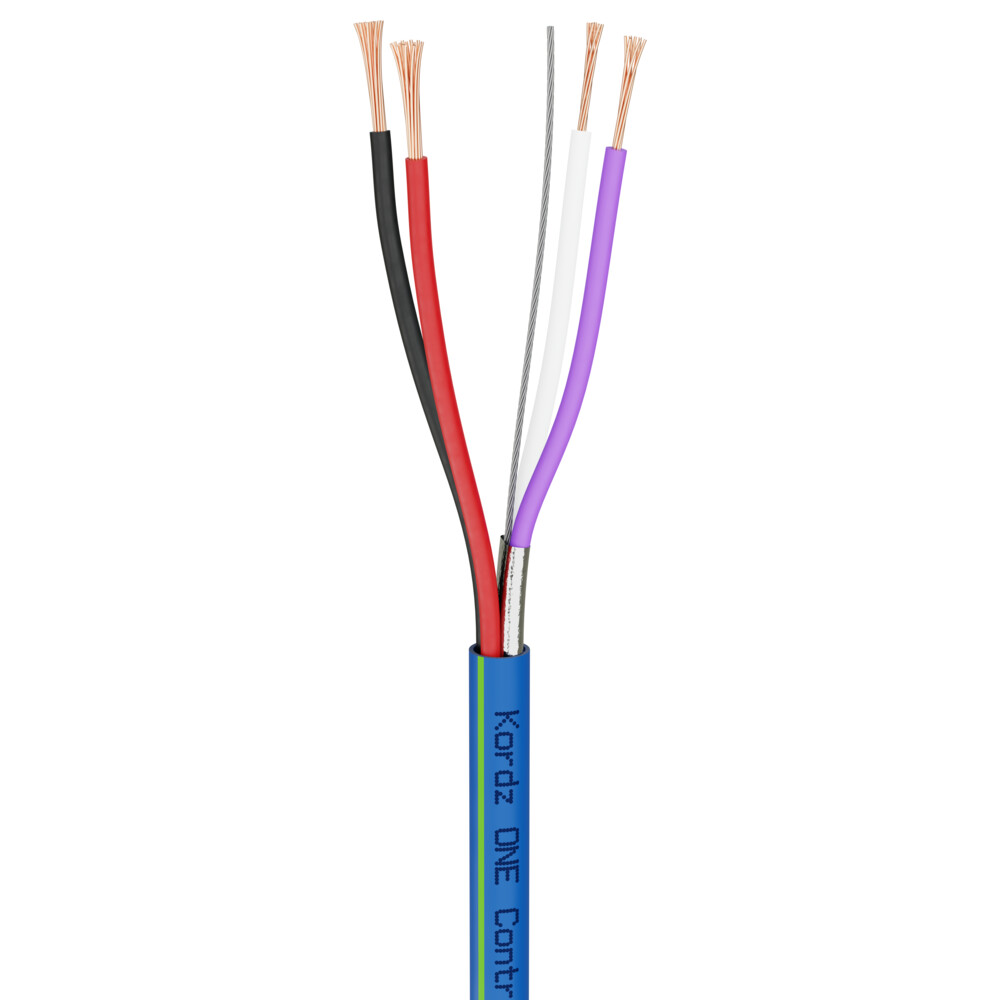

ONE 18AWG x 2C + 22AWG x 1P Control Cable
The Kordz ONE 18AWG x 2C + 22AWG x 1P Control Cable is engineered for professional building control and automation systems requiring combined low-voltage power and RS-485 communication. It integrates 18AWG stranded conductors for Safety Extra Low Voltage (SELV) power delivery with a 22AWG twisted pair for RS-485 data, supporting common lighting, HVAC, shading and automation architectures.
Designed for efficient installation, the cable features metre markings, an internal nylon ripcord, and a PVC cable rated to IEC60332-1 with CPR Eca compliance. Built for durability and consistent performance in commercial and residential environments, it provides a reliable control-infrastructure foundation for modern building systems backed by the Kordz lifetime warranty.
Select Colour Option:
- Description
- Order
- Price (AUD$)
- Product Code
- Stock Level
- Carton's QTY
-
305m, Blue/Green
9,999.00 (inc GST) K17005-305M-BL Call us
