ONEv2 18Gbps Passive HDMI Cable

Technology

18Gbps is the speed required in the HDMI 2.0 standard. Gigabits per Second is a measurement of data or network transmission speed. 18Gbps indicates that the speed of a cable or device is capable of transferring or receiving is 18 Gigabits of data per Second.

This icon states that this HDMI cable is capable of transmitting Ultra HD/4K signals up to 5 meters.

eARC or Enhanced Audio Return Channel is the next iteration after ARC. eARC works similarly to ARC, but will support up to 32 audio channels of high resolution 192Hz/24b audio, allowing
audio formats such as Dolby ATMOS, DTS:X and Auro3D to be used for a greater listening experience

HDR stands for High Dynamic Range. It enables displays to show a greater range colours and contrast between the black and white levels and on a display. The greater the dynamic range,
the more detail one can see in an image. There are various versions of HDR, the most common forms are HDR10, HDR12, & DolbyVision.

The connector on this cable requires a minimum of 1kg of force to remove it from the connected device.

Tested and compliant to the Vertical Wire-Class 1 fire rating.

The CMG Fire Rating is a specification as part of the UL 1685 standard, for general purpose communication/data cables installed inside walls. The CMG Fire Rating specifies that a cable
has passed a standardised flammability test to ensure the cable does not burn past 1.5m vertically and has been certified by an accredited laboratory.

The Kordz Lifetime Warranty means that the associated product is covered under warranty and promises maintained product functionality and performance for your lifetime. Refer to www.kordz.com.au/warranty for more information.

Product outline

Full 18Gbps bandwidth for reliable uncompressed 4K signal at all lengths up to 5m
Compact connector assembly rated for 1kg retention force
Flexible, slim, fire-rated PVC jacket for easy installation in tight spaces
Supplied in eco-friendly recyclable, quick-to-open paper packaging with hang tab
Individually tested for consistent performance that’s ‘Connectivity Assured’
Designed for economical, high-volume commercial integration projects
Lifetime warranty for peace of mind

Application

Data Rate: Up to 18.2Gbps (TMDS mode)
Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
Video Refresh Rate: Up to 240 frames per second
Colour Depth: Up to 16 bits
Colour Formats: RGB 4:4:4 / Y’C_BC_R 4:2:2 / Y’C_BC_R 4:2:0
Content Protection: Up to HDCP 2.2 supported
Audio Sample Rate / Channel: Up to 192KHz
Audio Sample Size: Up to 24 bits
Audio Channels: Up to 32 channels
Audio Formats Supported:
– DTS Master,
– DTS:X,
– Dolby TrueHD,
– Dolby Atmos
Auxiliary HDMI Features Supported:
– Consumer Electronic Control (CEC)
– Auto Lip-Sync Correction
– Ethernet channel
– Audio Return Channel (ARC)
– Enhanced Audio Return Channel (eARC)
– High Dynamic Range (HDR)

Technical info

HDMI CERTIFICATION – 0.5m – 5.0m Lengths

HDMI CTS (Certified Test Specification): High Speed with Ethernet
Certified Data Rate: 6.0Gbpsc, 17.82Gbps agg
Supported Data Rate: ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD)

MECHANICAL

Cable Diameter: 0.5m-3.0m: 5.10±0.15mm/0.201in Ø | 4.0m-5.0m: 6.50±0.15mm/0.256in Ø
Mounting Depth: 0.5m-3.0m: 20.0mm/0.79in Ø | 4.0m-5.0m: 22mm/0.87in Ø
Cable Bend Radius: 0.5m-3.0m: 25.50mm/1.00in Ø | 4.0m-5.0m: 32.50mm/1.28in Ø
Retention Force (nominal): 1kgf / 10N (nominal)

CONSTRUCTION

Primary Conductors: Solid 32-28AWG OFC, length dependent
Insulation: Polypropylene
Shielding on TMDS Pairs: Al / Mylar, 125% coverage
Shielding Overall: Al/Mylar, 125% Coverage + Al-Mg Braid 65% Coverage
Cable Jacket: 0.5 – 2.0m: VW-1 | 3.0 – 5.0m UL CMG fire-rated PVC composite materials
HDMI Connector Shell: Premium gauge folded steel, 1μ” Ni-plated
HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
Termination: High Frequency Soldering

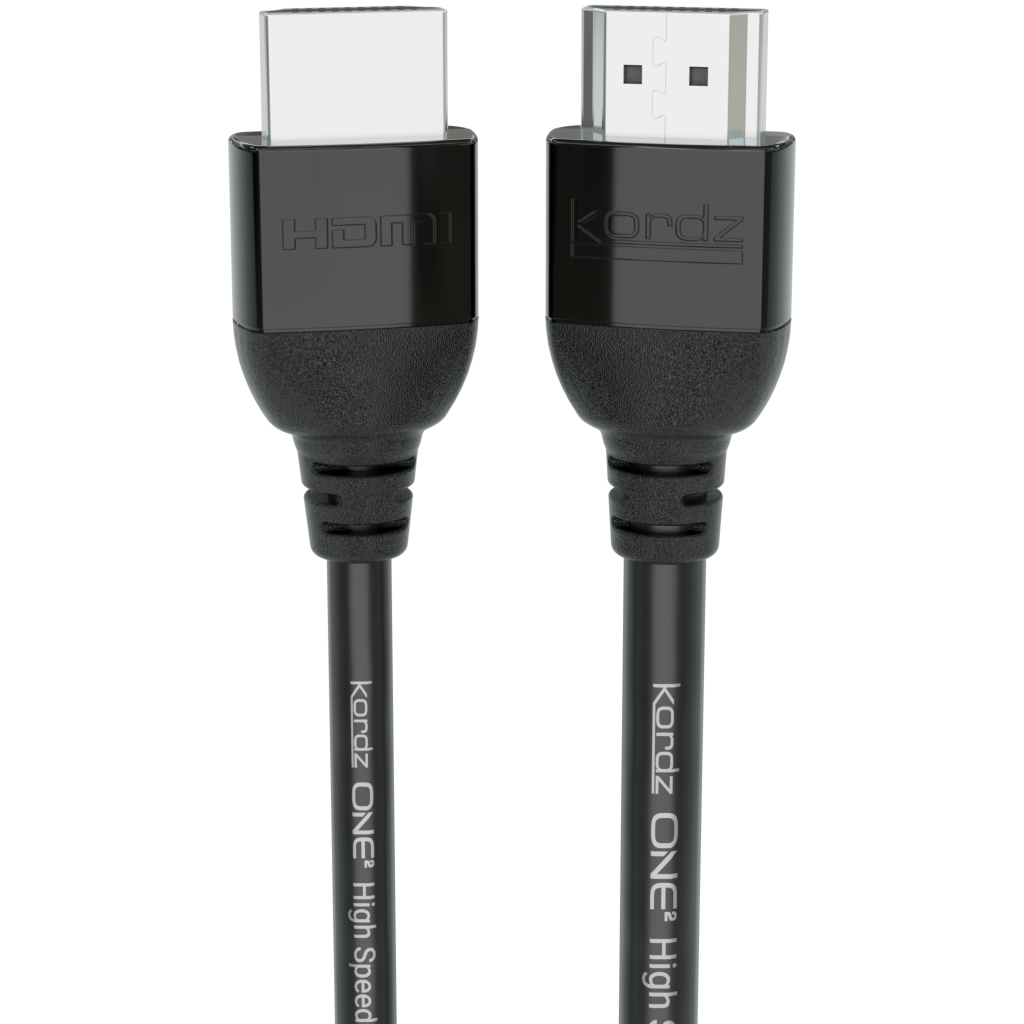

Connector Assembly: PVC glossy front shell with PVC injection moulded boot and strain relief

Warranty

The Kordz ONEv2 Passive HDMI Cable comes with our product Lifetime Warranty that promises maintained product functionality and performance for your lifetime.

Reviews

No reviews yet, for the meantime would you take one minute to leave a feedback about your experience?

Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Leave a Review

ONEv2 18Gbps Passive HDMI Cable

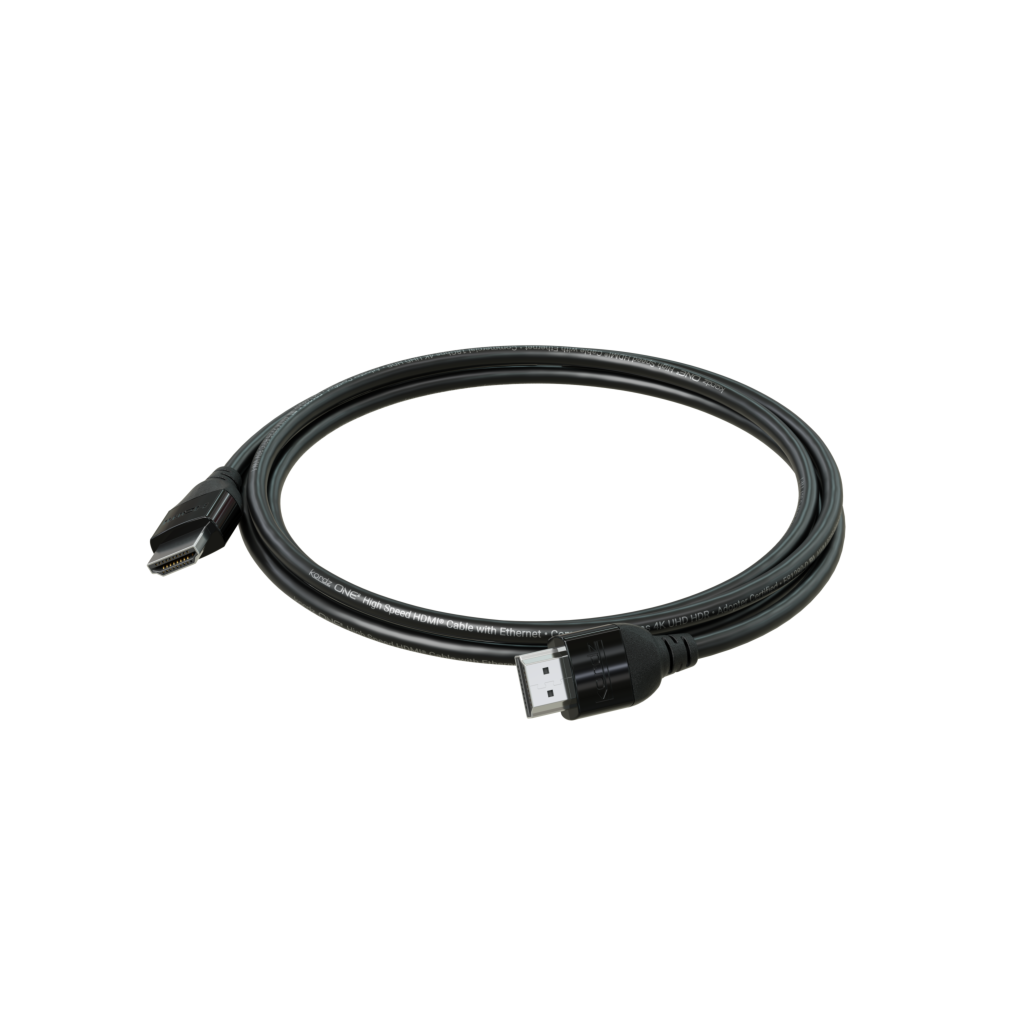

The Kordz ONEv2 HDMI® Cable is the professional grade passive HDMI cable designed to provide reliable, economical, uncompressed 4K connectivity for high volume commercial integration projects. It delivers full 18Gbps performance at every length up to 5m.

Its slim, flexible, fire-rated PVC jacket and compact connector ensure durability, easy routing and secure connections, even in tight spaces. Supplied in eco-friendly recyclable paper packaging, the ONEv2 HDMI Cable is quick to open, easy to clean up, and comes backed by the Kordz lifetime warranty for peace of mind.

Select Colour Option:

Description
Order
Price (AUD$)
Product Code
Stock Level
Carton's QTY

Grey ,

9,999.00 (incGST) K16015-0050-CH Call us
Grey ,

9,999.00 (incGST) K16015-0100-CH Call us
Grey ,

9,999.00 (incGST) K16015-0150-CH Call us
Grey ,

9,999.00 (incGST) K16015-0200-CH Call us
Grey ,

9,999.00 (incGST) K16015-0300-CH Call us
Grey ,

9,999.00 (incGST) K1601G-0400-CH Call us
Grey ,

9,999.00 (incGST) K1601G-0500-CH Call us
