Product outline
Controller Platform for High-density HDMI Signal Generation and Analysis with the STIX Ecosystem.
- Supports proprietary HDMI statistical signal monitoring and verification for up to 48 STIX analyser and generator devices in a compact 1RU chassis.
- Large-scale compliance testing, system pre-deployment emulation, QC protocols, and computational system signal throughput tracking.
- Ultra-compact 1RU form factor – Space-saving at a single rack unit height.
- Powers connected devices – USB Type-A provides data communication while powering all rear-panel-connected STIX analyser and generator devices, eliminating the need for external adaptors.
- Centralized Web-based GUI – Easy testing, setup and management control with precise remote network monitoring and display of real-time HDMI video thumbnails.

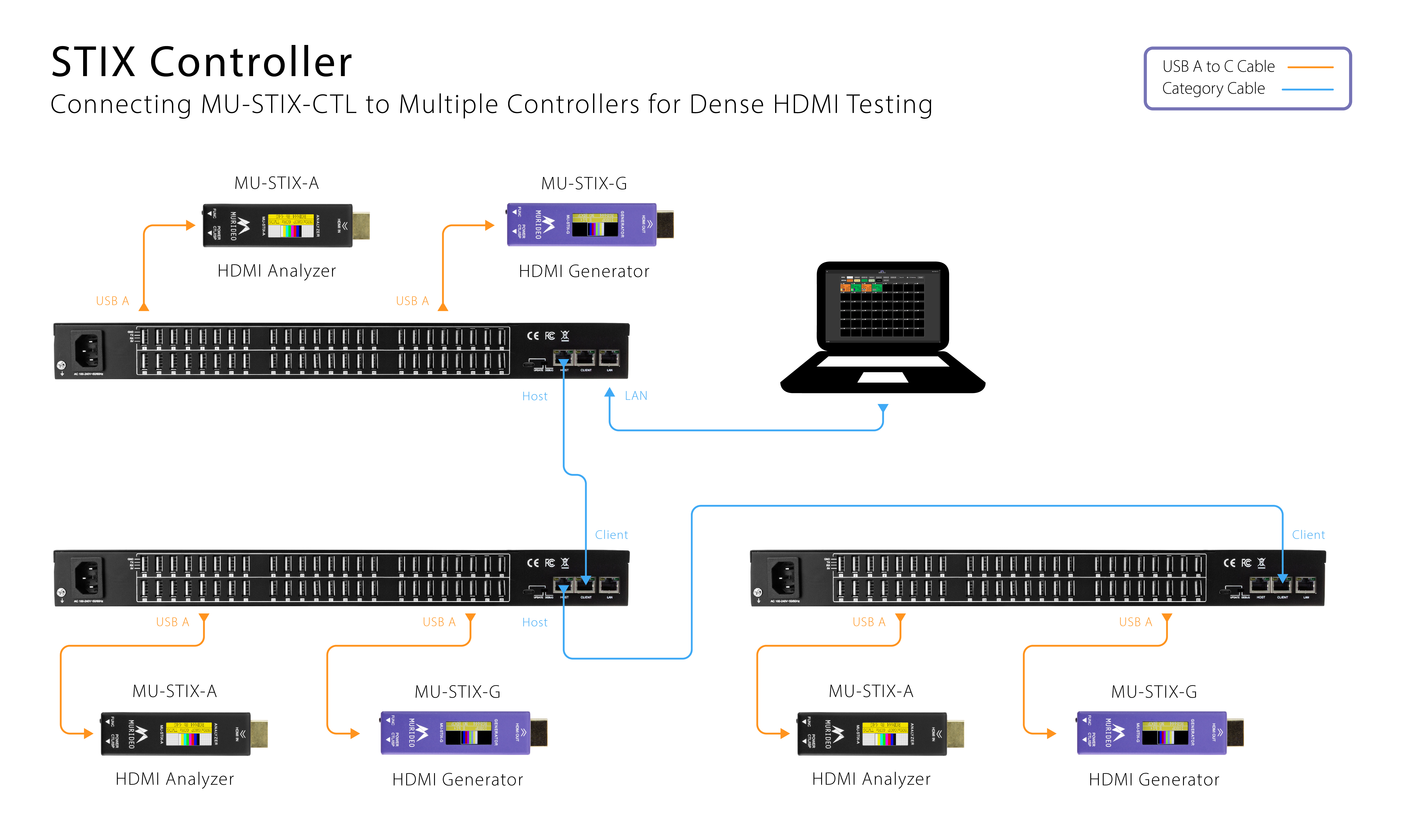

- A Scalable HDMI test platform – RJ45-cascadable. At full capacity, 20 cascaded controllers can support 960 STIX-A and STIX-G device combinations.
- Designed for large-scale testing – A unique, cost-effective, high-capacity testing and QC platform for manufacturers or distribution vendors wishing to QC HDMI I/O devices before finalized shipping.

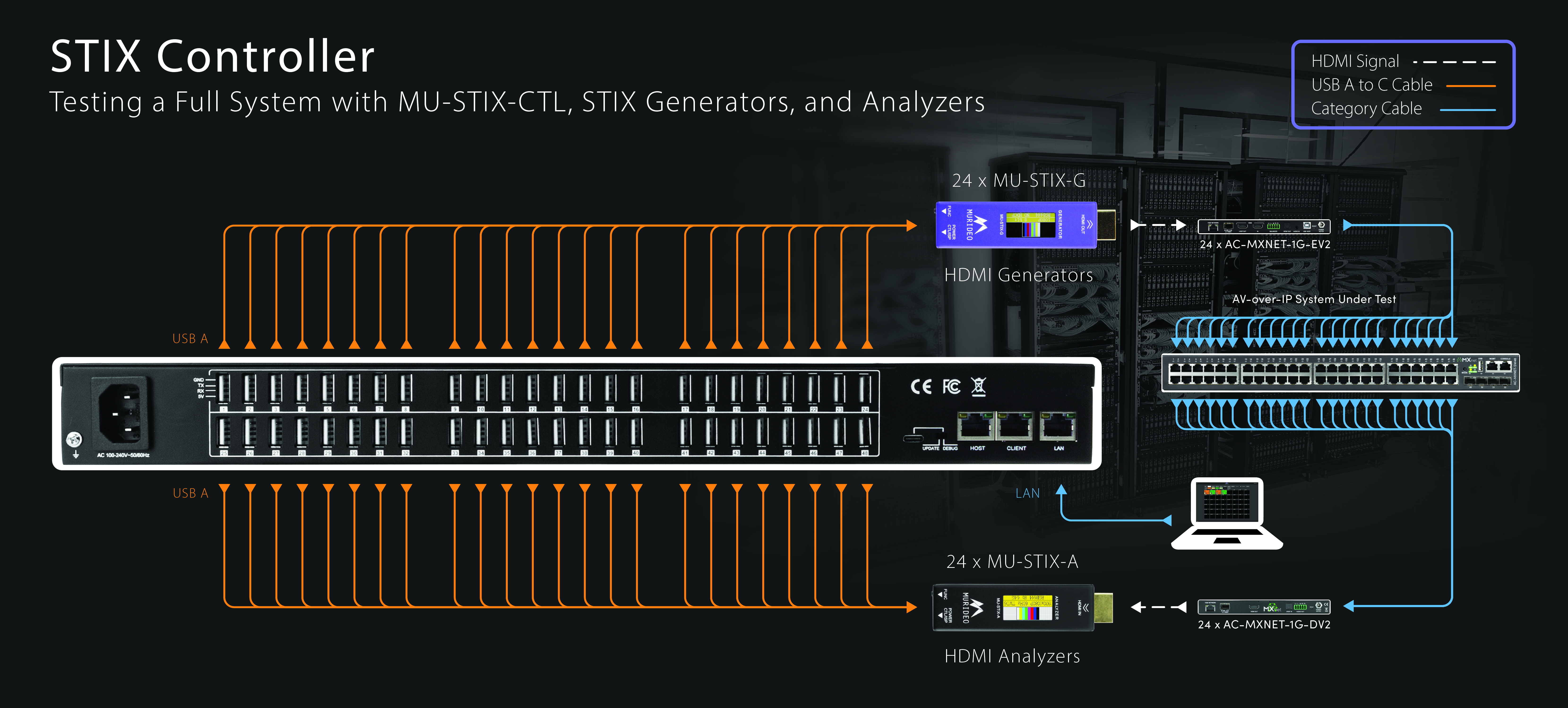

- Suitable for Integrator’s Testing – Viable time-saving test regimen for commercial and residential integrators who routinely sell and install high-count AVoIP endpoint systems and seek complete QC pre-deployment.
-
Application
-
Technical info
Ports
USB:
- 48x Type-A (MU-STIX devices)
- 2x Type-A DEVICE (Mouse, Keyboard)
- 1x Type-C (ISP)
HDMI Output:
- 1x Type-A, Female (web interface)
RJ45:
- 1x LAN (web interface)
- 1x HOST (connect to CLIENT unit)
- 1x CLIENT (connect to HOST unit)
Power:
- 1x IEC 320-C14, male
Ground:
- 1x Grounding terminal
Control
Web Interface: Yes, LAN
ISP: USB Type-CEnvironmental
Operating Temperature: -5 to 51° C (23 to 125° F)
Storage Temperature: -20 to 60° C (-4 to 140° F)
Humidity Range: 5-90% RH (No Condensation)Power
Power Consumption (Total): 160 W Maximum
Power Supply Input: 100-240 VAC ~ 50/60 HzPhysical / Dimensions
Mounting: 1-RU Rack Mounting Brackets, and/or Rubber Feet
Dimensions (Unit): 259(L) x 439.75(W) x 44.45(H), 10.196(L) x 17.313(W) x 1.75(H) inch
Dimensions (Packaged): 565(L) x 375(W) x 125(H) mm, 22.24(L) x 14.76(W) x 4.92(H) inch
Weight (Unit): 8.25 lbs. (3.74 kg)
Weight (Packaged): 10.42 lbs. (4.73 kg)
Regulatory: CE/FCC/UL -
Warranty
Murideo 2-year standard product warranty.
-
Reviews
No reviews yet, for the meantime would you take one minute to leave a feedback about your experience?
Leave a Review -
Downloads
Murideo STIX Test Ecosystem Controller

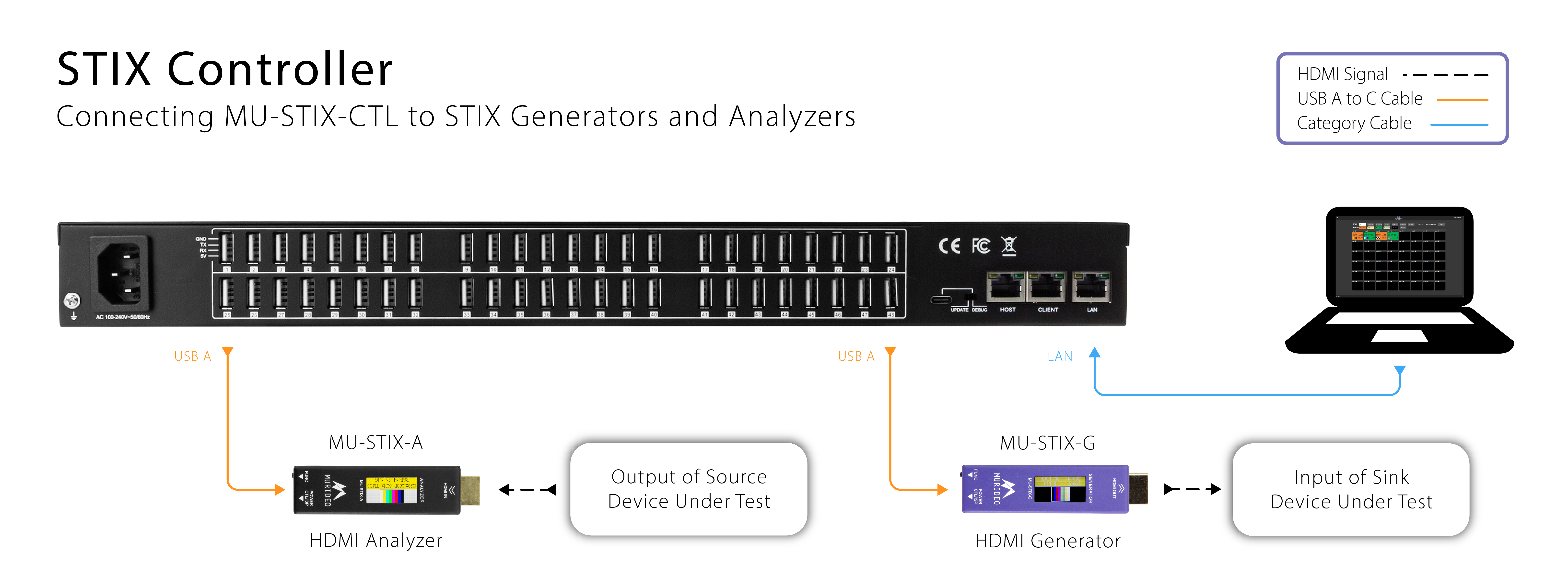

Murideo’s STIX Controller unit (MU-STIX-CTL) is the central hub of the STIX ecosystem, a 1RU controller built to coordinate and automate HDMI testing at scale. Through direct USB communication, it can trigger and configure STIX generators, collect closed-loop feedback from STIX analysers, and streamline every part of the testing workflow. The rear panel includes 48x USB Type-A ports, providing both data and power to connected STIX devices, eliminating the need for external adapters and keeping racks clean and organised.
A browser-based interface makes it easy to manage one or multiple cascading MU-STIX-CTL units from anywhere on the network. At full capacity, up to 20 controllers can be daisy-chained, supporting as many as 960 connected STIX devices. The interface provides detailed HDMI signal information from each attached STIX device, supports full remote control, and displays real-time video thumbnails of generated signals.
Integrators deploying large AVoIP or AV distribution systems will benefit from the MU-STIX-CTL ecosystem as a powerful pre-deployment verification tool, ensuring every device in the chain is fully tested and ready for the field.
Built for high-volume system commissioning, quality control, compliance testing, and device burn in, the MU-STIX-CTL is ideal for integration off-site system workshops, manufacturers, HDMI certification facilities, and engineering labs.
STIX are currently available as indent order.
All Murideo prices are subject to change without notice, due to fluctuating exchange rates.
Price displayed is indicative only. Quotes will be provided at the time of purchase.
Select Colour Option:
- Description
- Order
- Price (AUD$)
- Product Code
- Stock Level
- Carton's QTY
-
Black
,
9,999.00 (inc GST) MU-STIX-CTL Call us
